1. 문제 및 설명
[HDLBits] Fsm serial
1. 문제 및 설명 A. 많은 직렬 통신 프로토콜에서는 데이터 바이트의 경계를 구분하기 위해 시작 비트(start bit)와 정지 비트(stop bit)를 함께 전송한다. B. 일반적인 프레임 구조는 다음과 같다.시작
idkihg.tistory.com
위의 문제에서 비트 스트림에서 바이트가 올바르게 수신되었는지 판별할 수 있는 유한 상태 기계를 구현했으므로, 정상적으로 수신된 데이터 를 출력하는 데이터 패스를 추가하라. done 신호가 1일 때 out_byte 값은 유효해야 하며, 그 외의 경우에는 어떤 값이 출력되어도 상관없다. 직렬 프로토콜을 LSB임을 유의하라.

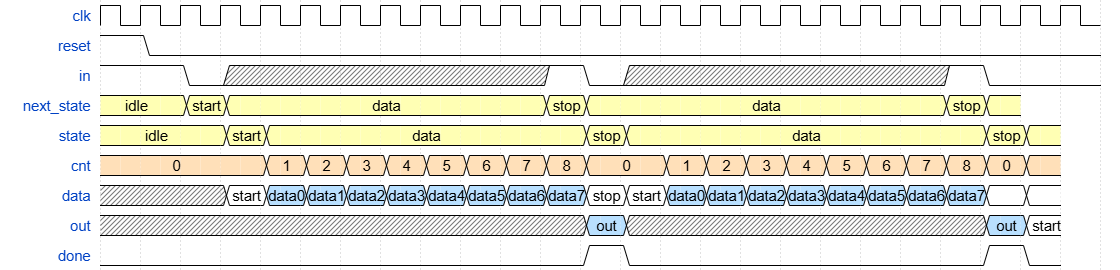

2. Waveform

3. 모듈 정의
module top_module(
input clk,
input in,
input reset, // Synchronous reset
output [7:0] out_byte,
output done
);
4. 답
module top_module(
input clk,
input in,
input reset, // Synchronous reset
output [7:0] out_byte,
output done
); //
parameter idle = 3'b000, data = 3'b001, stop = 3'b010, start = 3'b011, Error = 3'b100;
reg [2:0] state, next_state;
reg [3:0] cnt;
reg [7:0] out;
assign out_byte = out;
assign done = (state == stop);
always@(*)
begin
case(state)
idle: next_state = !in?start:idle;
start: next_state = data;
data: next_state = (cnt==8)?(in?stop:Error):data;
Error: next_state = in?idle:Error;
stop: next_state = !in?start:idle;
default next_state = state;
endcase
end
always@(posedge clk)
begin
if(reset)
begin
state <= idle;
cnt <= 4'd0;
out <= 8'd0;
end
else
begin
state <= next_state;
if(next_state == data)
begin
cnt <= cnt + 4'd1;
out <= {in, out[7:1]};
end
else
begin
cnt <= 4'd0;
end
end
end
endmodule
