1. 문제 및 설명

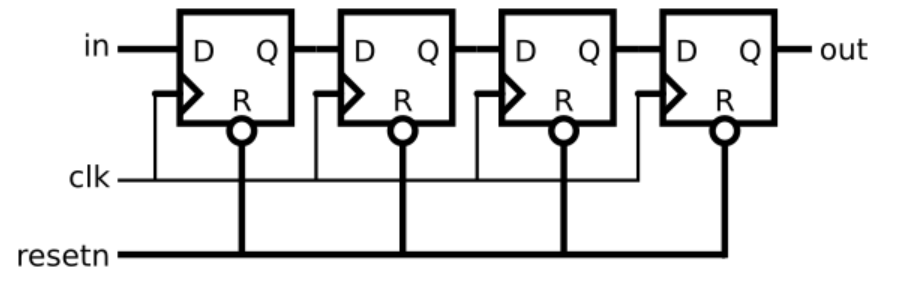

- 아래 그림의 회로를 구현하시오

2. 모듈 정의
module top_module (
input clk,
input resetn, // synchronous reset
input in,
output out);
3. 답
module top_module (
input clk,
input resetn, // synchronous reset
input in,
output out);
wire [3:0] q;
assign out = q[3];
always@(posedge clk)
begin
if(!resetn)
q <= 4'b0;
else
begin
q[3:0] <= {q[2:0], in};
end
end
endmodule'Verilog > HDLbits' 카테고리의 다른 글
